GEMINI

GEMINI

INTEGRATED

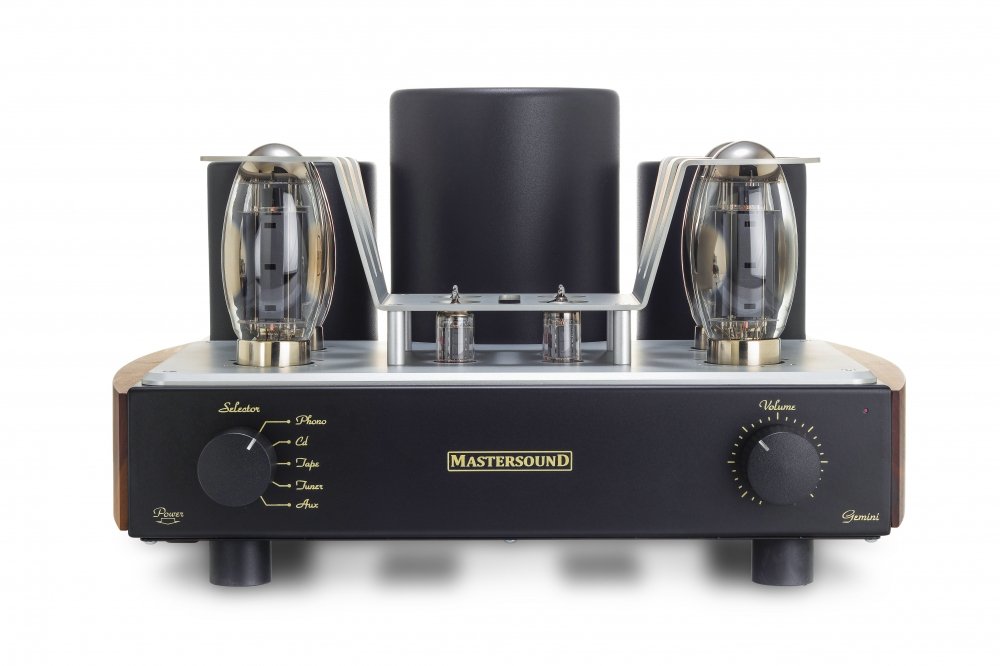

The GEMINI Integrated Amplifier represents a bold step in MastersounD’s dedication to high-performance valve amplification. Powered by KT150 valves, it delivers 2 x 50 watts in push-pull Class “A” mode and can operate at 25 watts per channel in triode mode. This adaptability offers an exceptional listening experience, balancing power, finesse, and tonal richness.

The Gemini's push-pull configuration is designed with meticulous attention to detail and provides ample headroom and drive for a wide range of loudspeakers. Whether reproducing complex orchestral arrangements or intimate acoustic sessions, its sound is effortless, transparent, and musically engaging.

The addition of a built-in phono stage (MM) further elevates its versatility, making it a superb choice for vinyl enthusiasts seeking the warmth and immediacy of analogue playback. With its elegant aesthetics and robust design, the Gemini is a testament to MastersounD’s mastery of amplifier engineering.

GEMINI TECHNICAL SPECIFICATIONS


POWER:

2 x 49w (2 x 25w triode) class A

TUBES:

4 x KT150 - 4 x ECC802

Input:

XLR: 1 x Line, RCA: 1 x phono MM - 3 x Line - 1 Direct (Output line)

OUTPUT:

1 Preamplified - 1 Line

INPUT IMPEDANCE:

50k ohm

LOAD IMPEDANCE:

4 – 8 ohm

Output transformer:

MastersounD

REMOTE CONTROL:

Yes

Automatic bias:

Yes

Bandwidth:

14 hz / 22k hz 0 db

Negative feedback:

0 dB

Consumption:

418w

Dimensions:

45 x 43 x 27 cm

WEIGHT:

31 Kg

Warranty parts and laboUr:

5 Yrs (12 months for valves) non trans.
