EVO 300B
INTEGRATED
The EVO 300B Integrated Amplifier epitomises MastersounD’s commitment to pushing the limits of valve amplifier design. Utilising four 300B valves in a parallel configuration, it delivers 2 x 24 watts of pure Class “A” triode power. This design offers an exquisite blend of delicacy and authority, bringing recordings to life with remarkable warmth and authenticity.
The legendary 300B valve is celebrated for its smooth midrange, lifelike timbre, and emotional engagement, and the EVO 300B takes these qualities to new heights. Its parallel design provides enhanced dynamic range and control, even with demanding speakers, ensuring effortless musicality.
Encased in an elegant chassis, the EVO 300B reflects MastersounD’s renowned craftsmanship, combining technical innovation with Italian sophistication. This amplifier is a masterstroke for those who value purity in audio reproduction.
EVO 300B TECHNICAL SPECIFICATIONS
POWER:
2 x 21w class A
TUBES:

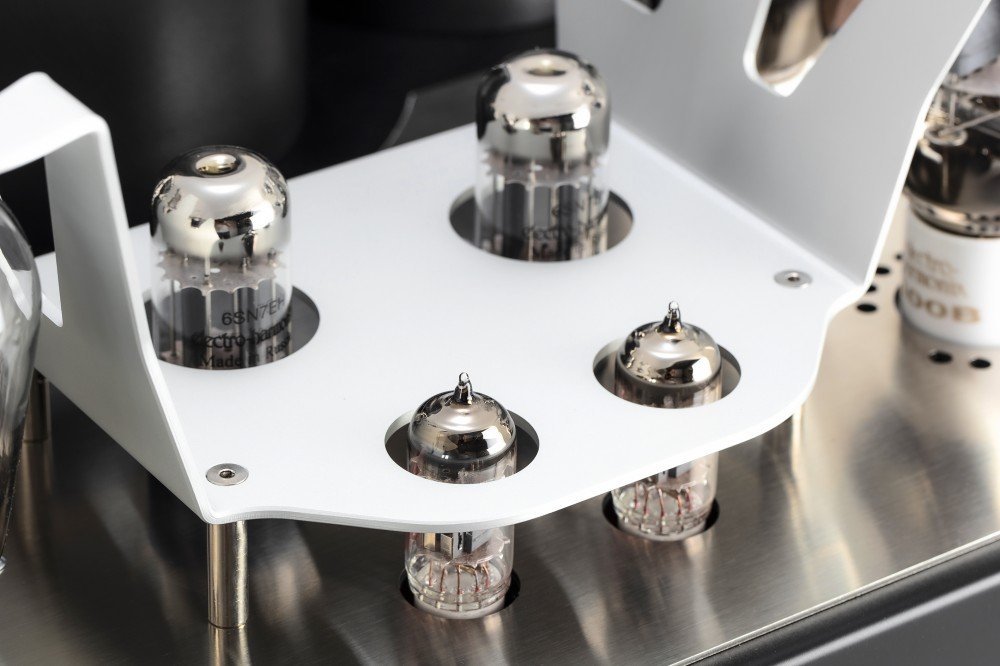

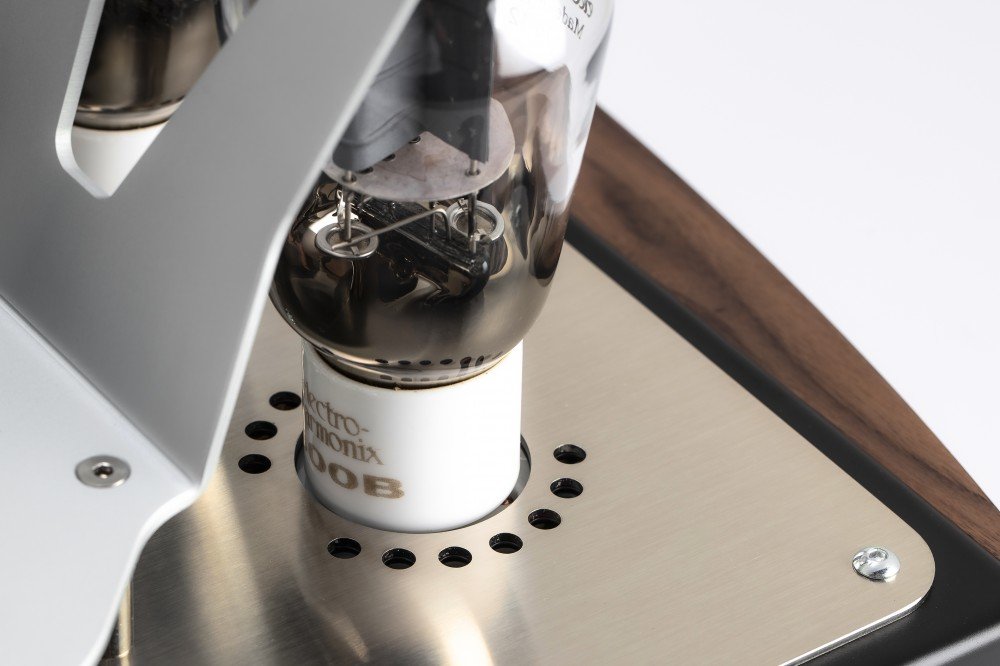

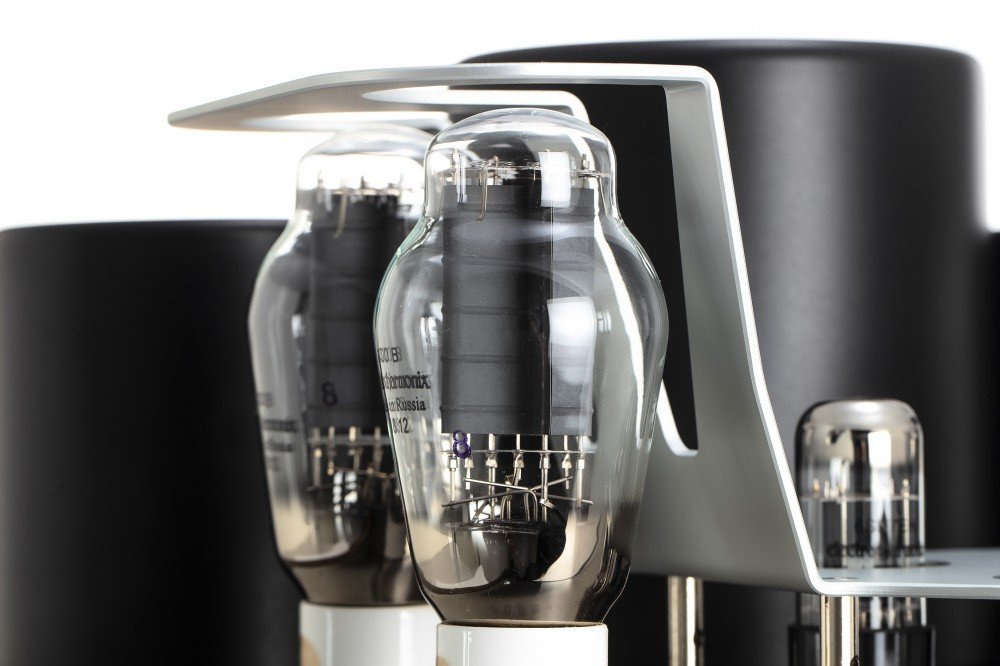

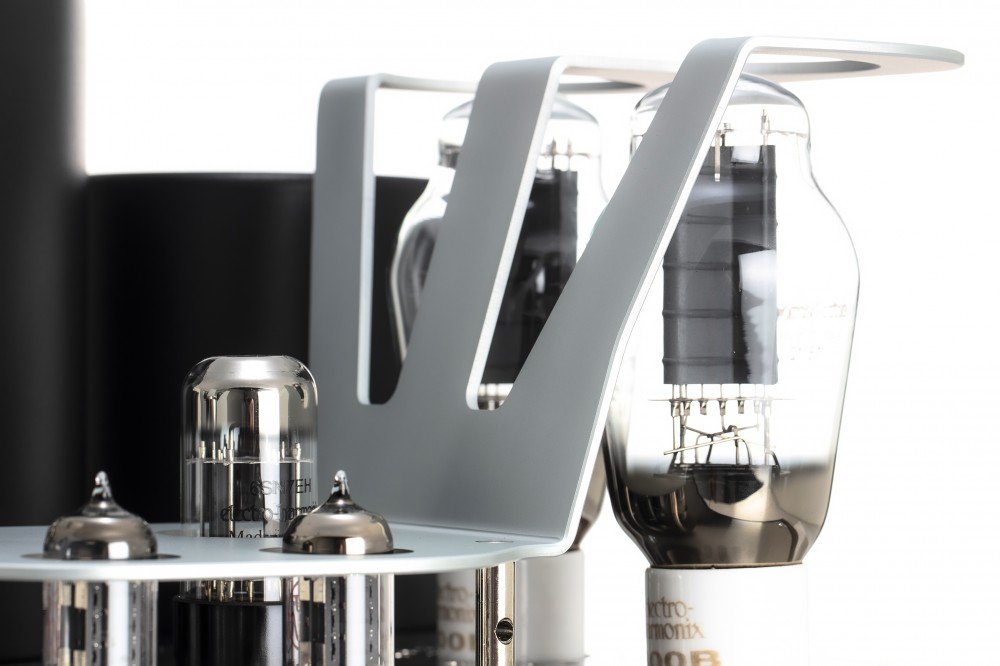

4 x 300 B - 2 x ECC802 - 2 x 6SN7
Input:

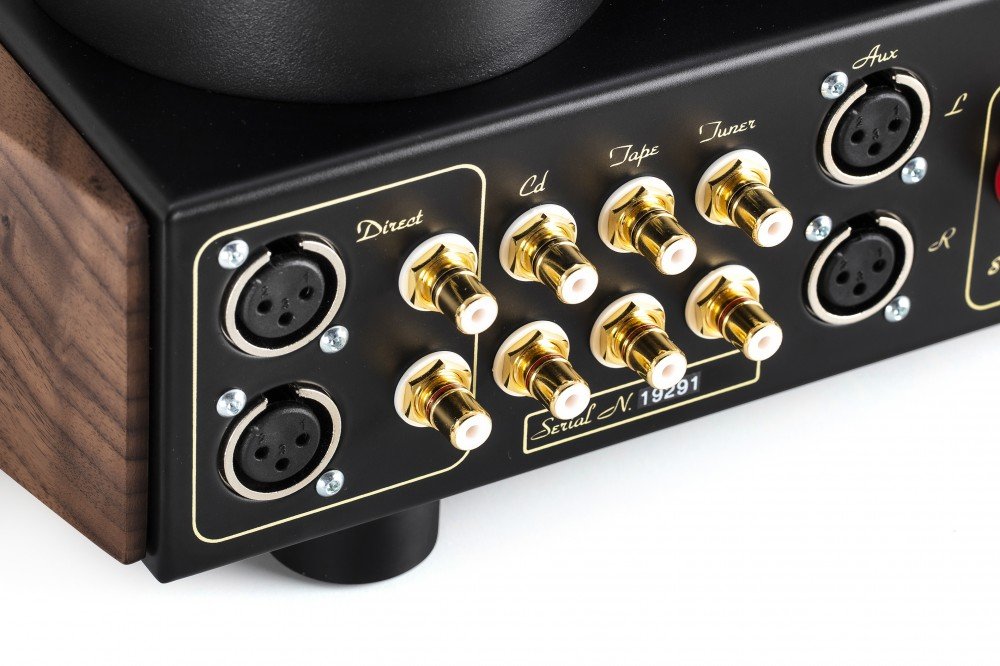

XLR: 1 x Line + 1 Direct, RCA: 3 x Line + 1 Direct
INPUT IMPEDANCE:
50k ohm
LOAD IMPEDANCE:
4 – 8 ohm
Output transformer:
MastersounD
REMOTE CONTROL:
Yes

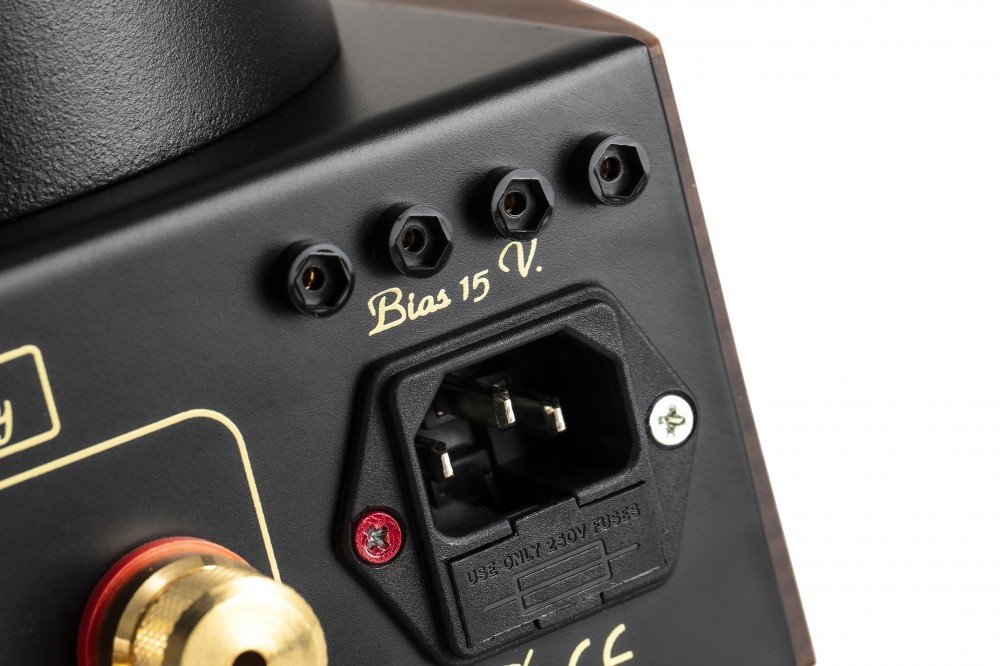

Automatic SETTABLE bias:
Yes
Bandwidth:
8 hz / 30k hz 0 db
Negative feedback:
0 dB
Consumption:
230w
Dimensions:
45 x 43 x 27 cm
WEIGHT:
34 Kg
Warranty parts and laboUr:
5 Yrs (12 months for valves) non trans.
