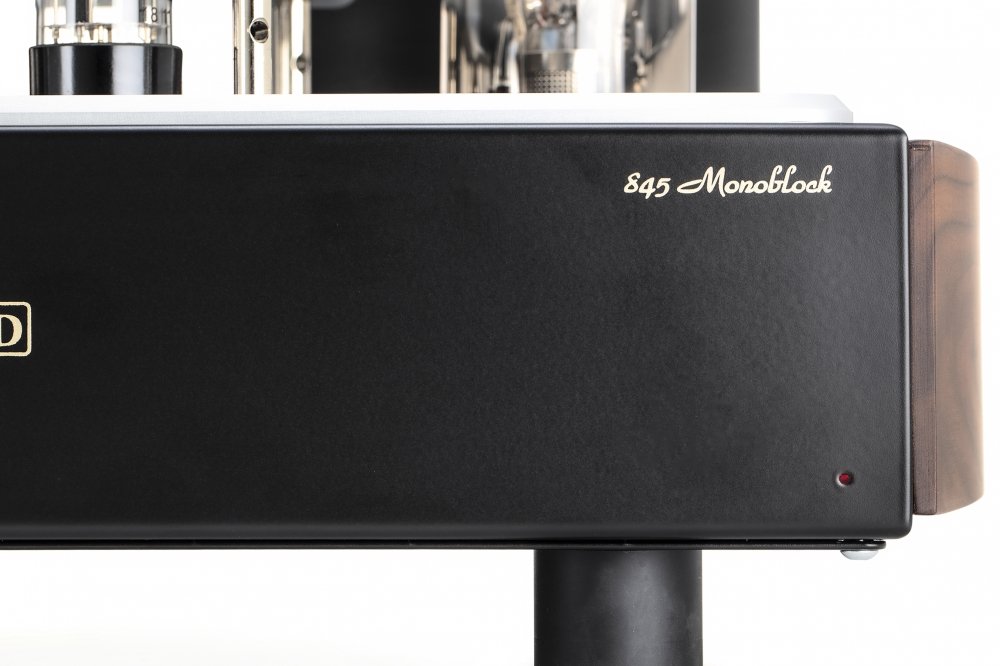

845 MONO
845
MONOBLOCK
The MastersounD 845 Monoblock exemplifies Italian craftsmanship and audio innovation, delivering 50 watts of Class “A” single-ended power. Featuring the legendary 845 valve, it offers exceptional warmth, clarity, and dynamic precision, making it an ideal match for the PHL5 or SPETTRO preamplifiers.
With an impressive bandwidth of 8 Hz to 90 kHz and zero negative feedback, it preserves musical purity and detail across the spectrum. Equipped with 2 x 845 tubes, 2 x 6SN7 valves, and a custom MastersounD output transformer, it ensures peak performance through automatic biasing and compatibility with 4–8 Ohm speakers.
The 845 Monoblock is a masterpiece for audiophiles seeking unmatched power, tonal accuracy, and musicality.
845 MONOBLOCK TECHNICAL SPECIFICATIONS
POWER:
50w class A
TUBES:
2 x 845 - 2 x 6SN7
Input:
1 line RCA + 1 line XLR
INPUT IMPEDANCE:
50k ohm / sens. 1 volt
Output transformer:
MastersounD
Automatic settable bias:
Yes
Load impedance:
4 – 8 Ohm
Bandwidth:
8hz / 90khz 0 db
Negative feedback:
0 dB
Consumption:
197w
Dimensions:
45 x 40 x 27 cm
WEIGHT:
30 Kg
Warranty parts and laboUr:
5 Yrs (12 months for valves) non trans.
