GENUIN FS1 MK3
GENUIN FS1 MK3
HARMONY IN CONSTRUCTION
Topping the Genuin Series, the all-new FS1 MK3 has superbly natural sound and outstanding resolution. Creating a spacious soundscape that invites you to explore it, the harmonic design allows you to uncover new depths and textures in your home system.
DYNAMIC
AND PURE

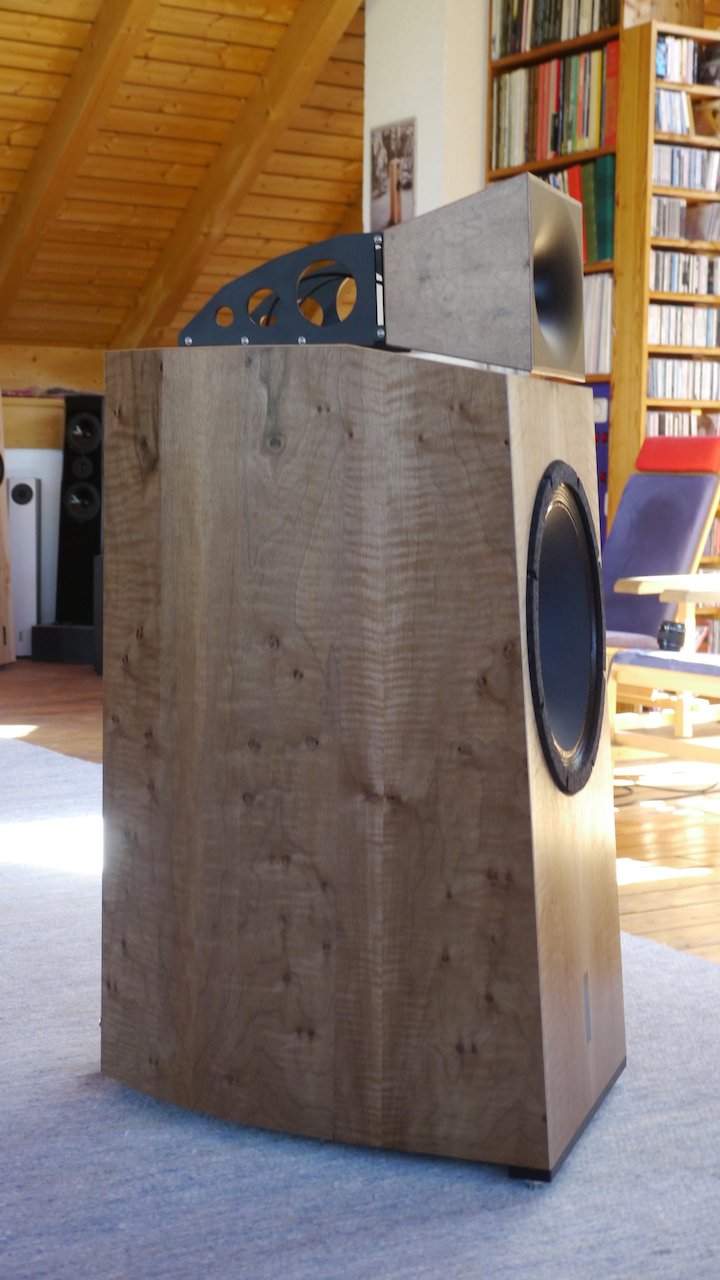

Dynamic and pure, the FS1 MK3 loudspeaker reveals every nuance within the performance with absolute clarity and precision. This superbly balanced realism comes from an in-house air-dried 16” AlNiCo woofer, offering outstanding bass reproduction. Easy to drive and efficient, the FS1 MK3 is compatible with any amplifier design, from low-powered tube amps to powerful solid-state designs.
GENUIN FS1 MK3 TECHNICAL SPECIFICATIONS
MATERIAL:
Birch plywood
THICKNESS:
19mm / 0,75"
Internal Bracing:
Structural bracing interaction
CROSSOVER CHAMBER:
No
Frequency range:
35Hz - 20kHz ± 2dB
BASS CABINET:
Harmonic Bass Reflex
PORTING:
Floor
woofer DRIVER specifications
WOOFER:
380mm / 16"
material:
Air-dried Paper
CROSSOVER FREQ:
850 Hz
MID-HIGH DRIVER specifications
MID-HIGH:
Compression driver
Horn Throat:
1,4"
MEMBRANE DIMENSIONS:
75mm / 3”
material:
Titanium
GENERAL specifications
MAX POWER INPUT:
150 W RMS
EFFICIENCY:
96dB
impedance:
8 Ohm
Impedance lineariSation:
Yes
TERMINALS:
Bi-Wiring
TERMINALS material:
Gold plated tellurium copper
FEET:
Adjustable Spykes
MAGNET:
AlNiCo
DIMENSIONS :
116 x 45 x 62 cm
45,75 x 17,75 x 24,35 in
WEIGHT:
60 kg
PACKAGING DIMENSIONS:
140 x 70 x 55 cm
Loudspeakers per carton:
1
Packaging weight:
70 kg
Warranty parts and laboUr:
5 years speakers, non trans.
VENEERS specifications
Standard Veneers:
Cherry, Walnut
Special Veneers:
Dark Walnut, Black Walnut, Oak, Maple
Premium Veneers:
Indian Apple, Olive, Elm, Maple Core, Smoked Cherry
HANDMADE
IN GERMANY
The result of all our products is the result of more than 30 years of experience in designing and developing some of the best HiFi speakers in the world.
